Install hila

hila is an infrastructure-agnostic platform that can be deployed on any cloud infrastructure, whether it is public or private, such as AWS, Azure, GCP, OCI, or on-premises. As long as the infrastructure supports Kubernetes, hila can be deployed on it.

Microstack or cluster

Instructions differ depending on whether you want to deploy hila on a single-node Kubernetes cluster (k3s microstack) or a multi-node Kubernetes cluster (Full install).

Standard install pulls hila containers from hila's cloud package registry and includes everything you need to install an instance of hila, including an SSH certificate, DNS registration.
Custom Cert installs with your own certificate.
Custom Cert & Repo installs with a custom certificate and installs hila from a local registry.
OnPrem installs hila in an on-premises, air-gapped environment.

Download the install scripts

Download the install scripts with the following command, assuming you have set $api_key to the API key provided to you by your Vianai contact.
```
wget --header "x-api-key:$api_key" -q -O - "https://webservices.launchpad.vianai.site/v1/stacks-installers" | tar -xzv
```
The rest of this document assumes you have downloaded the install scripts to your current working directory.

Create a cluster on your provider

These instructions show how to have Vianai create a cloud cluster for you.

If you want to create a cluster manually, you can do so and skip to the Run the install scripts section.

Minimum requirements for the cluster:

CPUs 16

RAM 64 GB

Disk 500 GB

OS Ubuntu 24.04 LTS

Networking • HTTPS (for end user access)
• SSH enabled (or similar method so you can upload the script to the VM)

These instructions describe how to create a cloud cluster on the following cloud providers for you to run hila.

AWS
Azure
GCP
OCI
OnPrem

AWS

Create a cloud cluster on the AWS platform.

Requirements

You must have downloaded the install scripts. See Download the install scripts.

Steps

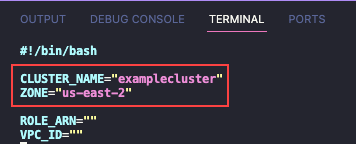

At the top of the aws-cluster.sh script, edit the following values. An example is given in the following image.

CLUSTER_NAME Enter your cluster name.

ZONE Enter your zone.
Run the aws-cluster.sh script. The terminal shows the logs as it creates the resources. The entire process takes up to 20 minutes, and the script ends automatically when the all the resources have been created.

Azure

Create a cloud cluster on the Azure platform.

Requirements

You must have downloaded the install scripts. See Download the install scripts.

Steps

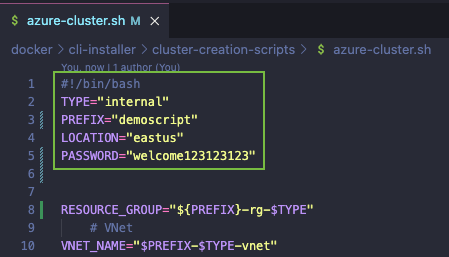

At the top of the azure-cluster.sh script, edit the following values. An example is given in the following image.

TYPE	internal
PREFIX	Cluster name
LOCATION	Cloud provider region
PASSWORD	Password of the bastion host (only required on internal clusters)

azure-1

Scroll to the bottom of the script and set your node pool details in the lines that begin with “create_pool”. An example of the format appears in the following image.
Authenticate to Azure with the AZ login command and follow the prompts as directed.

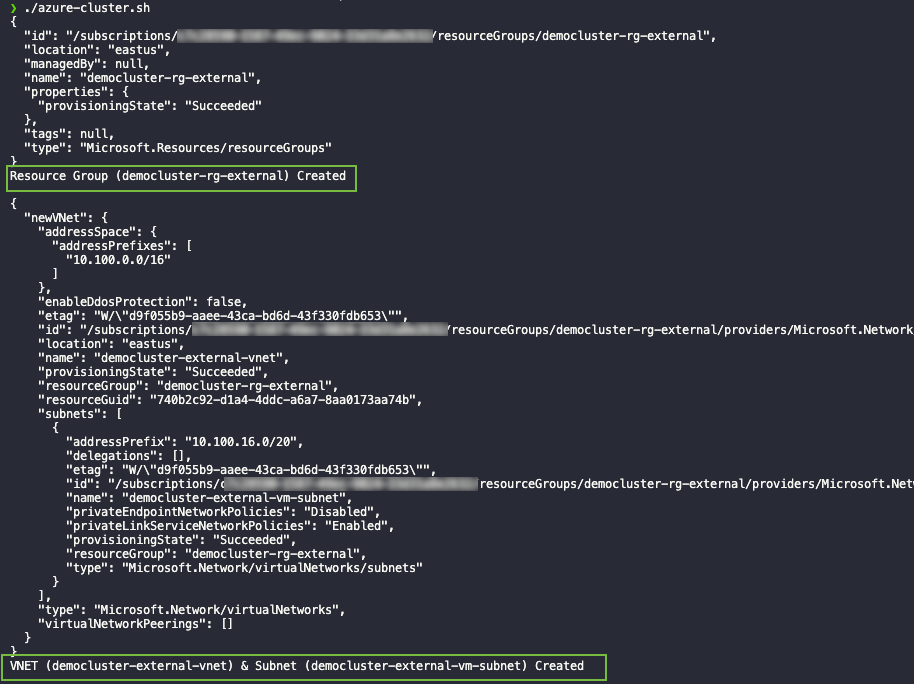

Run the azure-cluster.sh script. As the script runs, it confirms the creation of each resource, as shown in the following example.

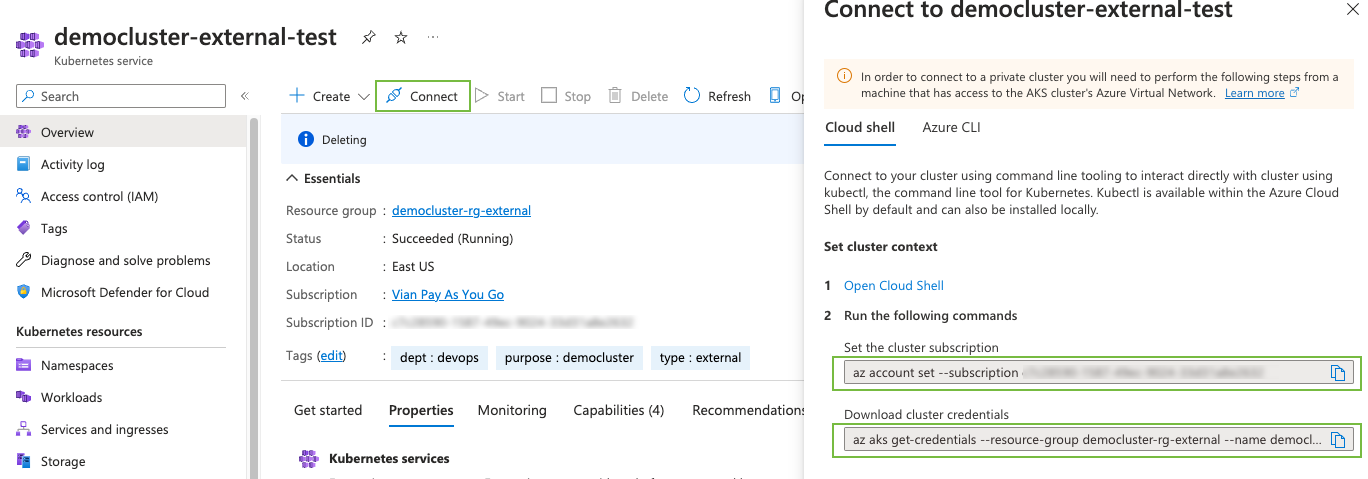

When the script finishes, navigate to the Azure console, select your cluster, then click “Connect”. Two commands appear for you to enter: the first sets your subscription, and the second gets your cluster credentials. You will use these two scripts to configure the environment in which the installer runs.

GCP

Create a cloud cluster on the GCP platform.

Requirements

You must have downloaded the install scripts. See Download the install scripts.

Steps

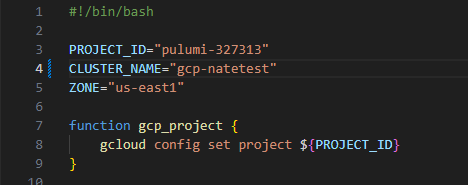

At the top of the gcp-public-cluster.sh script, edit the following values. An example is given in the following image.

PROJECT_ID	Enter your project ID.
CLUSTER_NAME	Enter your cluster name.
ZONE	Enter the region of your cluster.

gcp-1

Authenticate to Google Cloud using the gcloud auth login <email> command and follow prompts as directed.
Run the gcp-public-cluster.sh script. As the script runs, it confirms the creation of each resource.

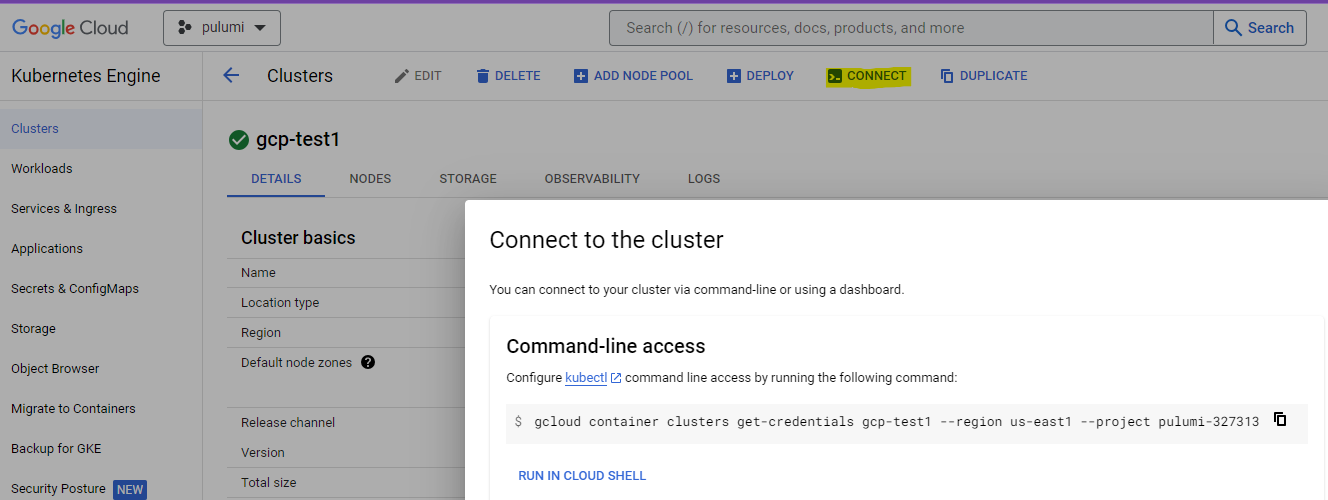

When the script has completed, navigate to the Google Cloud console, select your cluster, then click “Connect”. Copy and run the given command (see example in the following image) to configure the environment where the installer will run.

OCI

Create a cloud cluster on the OCI platform.

Requirements

You must have downloaded the install scripts. See Download the install scripts.

Steps

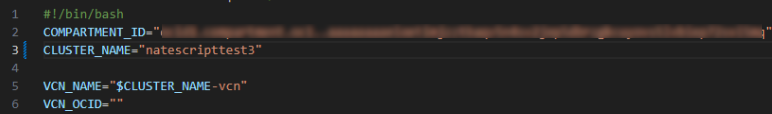

At the top of the oci-cluster.sh script, edit the following values. An example is given in the following image.

COMPARTMENT_ID Enter your project ID.

CLUSTER_NAME Enter your cluster name.
Scroll to the bottom of the script and set your node pool details in the lines that begin with “create_pool”. An example of the format appears in the following image.
Run the oci-cluster.sh script. As the script runs, it confirms the creation of each resource.
Authenticate to OCI using the oci-setup config command and follow the prompts as directed.

OnPrem

Follow these steps to install the platform in a local Kubernetes cluster.

Prerequisites

The following list shows what must already be configured before starting with the platform configuration.

It is necessary to previously configure a shared storage that is supported by Kubernetes, for example, configuring it through Glusterfs, CephFS, among others. To verify the configuration, the following link can be used as a reference. Storage Classes.

The following node characteristics are recommended for small clusters.

Node	Total nodes	CPU	RAM	Disk	Required
Default node	3	4	16 GB	200 GB	Yes
Job Pool	0 - 3	4	16 GB	200 GB	Yes

In the values-files folder, there is the main-nfs-pvc.yaml file, it must be updated to the required space, at least 500 GB.

The nodes must have taints and labels configured as follows:

Configuration	Key	Value	Node
Label	job	pool-1	Job Pool

Configuration	Effect	Key	Value	Node
Taint	NoSchedule	job	pool-1	Job Pool

You must have an A record and a CNAME record <*.dns.record.site>, this should redirect to record A.
Install a software load balancer that provides an ingress to access those services. That entry needs an IP range or subnet. It also requires strictArp network. In this guide we will use MetalLB for this purpose.
To access the platform, you need a DNS record point to the address given to MetalLB load balancer.

The platform can only be accessed securely through https protocol. You’ll need to create a certificate (public/private TLS key). Wildcard certificate is recommended.

While you should use the wildcard certificate, these are the subdomains that the wildcard would cover:

Subdomain
airflow.<dns.record.site>
edahub.<dns.record.site>
kibana.<dns.record.site>
ldapadmin.<dns.record.site>
mlflow.<dns.record.site>
monitoring.<dns.record.site>
pgadmin.<dns.record.site>
portainer.<dns.record.site>
sqlpad.<dns.record.site>
superset.<dns.record.site>
thinkfin.<dns.record.site>
ui.<dns.record.site>
webservices.<dns.record.site>

Previous configurations

Install MetalLB

Enable strict ARP mode.

kubectl edit configmap -n kube-system kube-proxy

and set:

apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: "ipvs"
ipvs:
   strictARP: true

Install MetalLB by manifest

kubectl apply -f
https://raw.githubusercontent.com/metallb/metallb/v0.13.4/config/manifests/metallb-native.yaml

Configure the MetalLB to use the IP address that you already have on the server following this guide.

Platform installation

You must enter in the Kubernetes context that you want to install the platform.

kubectl config current-context
Go to the k8s folder and locate the values-files/customer-stack-values-withoutGPU.yaml file and necessarily change the hostname to the previously created record. If you want to use GPU on your configuration use the file called customer-stack-values-with-GPU.yaml.

hostname: <dns.record.site>

In the same file, it is highly recommended to change the administrator password.

vianaiRootUserPassword:
database_user: postgres
database_pass: Change4Security
root_user: vianai
root_pass: Change4Security

If you change the password, you must also change the password hash used by Elasticsearch.
```
es:
  hash_password:
$2a$12$Agrv6M2Jfg5G1mj4jZNsVOxFwnrLUyfZAgwRaEsBRBCcoHlp0u5hC
#Change4Security
```
To create a new hash you can use this options:
- You can use the script that it’s located on the k8s folder called hash_password.py and run it like this.

  python hash_password.py NewPassword
- Visit the follow link to create a new for your password. https://bcrypt-generator.com
If you have changed the administrator password, you must do the same in the values-files/postgresql-chart-values.yaml file, otherwise, you can skip this step.
```
postgresqlPassword: Change4Security
postgresqlPostgresPassword: Change4Security
```
Locate the file install-stack-on-k8s.sh and execute the following command with the following parameters.If you want to use GPU on your configuration use the file called customer-stack-values-withGPU.yaml.

./install-stack-on-k8s.sh <Your-DNS> values-files/customer-stack-valueswithoutGPU.yaml my-context
Minutes after the script is executed, you will notice a message that tells you that you must update your DNS, the IP that you must place is the ingress IP that was configured on the load balancer.
Once the record has updated and also responds to the ingress IP, press enter to continue with the installation.
The platform can take a couple of minutes to be up and running, to monitor the progress it is recommended to execute the following command.

$ watch -n2 kubectl get pods --all-namespaces
Once all the pods are in the running state, you can verify the platform by accessing the established route.

"https://ui.$domain_name/"

Verify third-party requirments and whitelist URLs

Before installing hila, verify that your VM has the minimum third-party tools and that the necessary URLs are whitelisted.

See Third-party requirements and whitelist URLs for deploying hila for details.

Run the install scripts

Requirements

You need access to the Kubernetes control plane.
You need a Linux host with a bash shell.
Your Linux host needs kubectl and helm applications installed.

Steps

On your Linux host, set the following environment variables for running the install script.

cloud_provider=[azure|gcp|aws]
api_key=<API_KEY>
cluster_name=<CLUSTER_NAME>
dns_domain=<DNS_DOMAIN>
full_install=yes
admin_email=<ADMIN_EMAIL>
version=HILA_VERSION_TO_INSTALL # (Current release is 4.3.0-r.1)

Run the following script:
```
./scripts/full-stack-installer.sh vm_setup_only=run cloud_provider=$cloud_provider custom_cert=no custom_repo=no cluster_name=$HOSTNAME admin_email=$admin_email datadir=$datadir dns_domain=$domain api_key=$api_key image_branch=$version
```
- Important: The email is important because it is used to send a one-time login email to the admin user. The admin then sets up a password as then has access to hila.
- If you are prompted for values, press Enter to accept defaults.
- After this command finishes, it can take up to 30 minutes for you to get the one-time login email.
- To monitor the progress of the pod install, open a new terminal window to the VM and enter the following command:

  watch -n 2 kubectl get pods
- You can also monitor when the certificate goes true in another terminal window with this command:

  watch -n 2 kubectl get certificates -A
Set the current kubectl context with your cloud provider.
Connect to the new platform as follows:
1. Run kubectl get gateway -o yaml to view the platform URL. For example, monitoring.azure-base.vianai.site
2. Run kubectl get svc -n istio-system to print out the Load Balancer external IP.
3. Create a new DNS “A” record in your cloud provider. For example, for Azure:
  - azure-base.vianai.site
  - Copy the load Balancer IP and add to Routing
4. Create a new CNAME record using the DNS name above.
5. Allow for about 10 minutes for the DNS records to propagate and then connect to the Monitoring URL from the first step in this process.

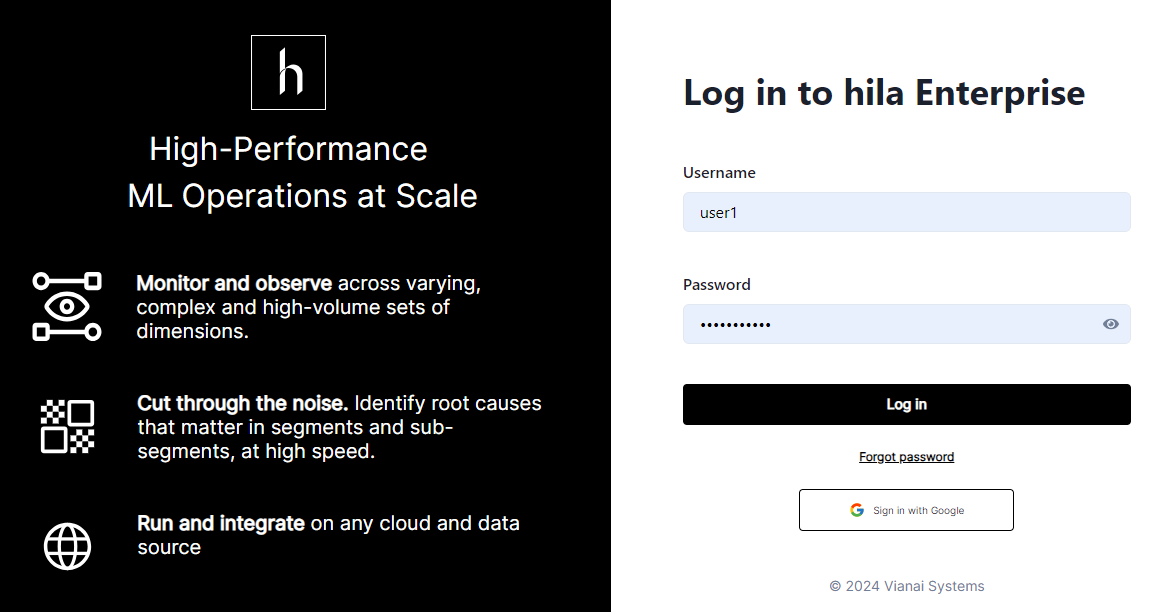

The following web page appears for you to log in to hila.

Clone images to your private registry

This section describes how to install and deploy Vianai container images into a private registry. The intended audience is customers with air-gapped, private cloud, or on-premise deployments.

To perform these following steps your computer needs to be configured with python, the Docker engine, and Google SDK.

Requirements

Vianai provides:

Service account—A file containing credentials with read-only access for the Vianai container images in GCR (Google Cloud Registry).
Image map—A JSON-formatted file with a list of Vianai images.
Clone script—Python script to pull Vianai container images and transfer them to the target registry.

You provide:

Google SDK—Google Cloud binaries allowing authentication to Google Cloud services. See list of required software and versions.
Storage—Recommend 1TB of temporary storage for Docker container to be stored until the process completes.

Steps

Use the following steps to clone the Vianai container repository.

Extract the list of containers:
```
 python generate-image-map.py --version <VERSION> --output-file vianai-<VERSION>.json
```
where VERSION should match the Vianai platform For example, for v3.1r1 the command may be:
```
 python generate-image-map.py --version 3.1r1 --output-file vianai-v3.1r1.json
```
Note that you may not want or need all images provided in the image. Work with your Vianai Sales or Support representative if you want to remove unneeded images.
Make sure the private registry is set up and Docker is authenticated. See the section “Registry Authentication” (below) for instructions to create the private registry and set up authentication specific to the target cloud provider.

Create a docker secret so you can pull the image to your private registry.

Create a file called secret.yaml with the following content, and replace the placeholder SECRET with your secret:

apiVersion: v1
data:
   .dockerconfigjson: SECRET
metadata:
   name: secret-registry
kind: Secret

Add the secret to the default namespace with:

kubectl apply -f secret.yaml -n default
Add the secret to the knative namespace with:

kubectl apply -f secret.yaml -n knative-serving

When you run a job to pull the image, you must add the secret metadata name defined in the secret file as a value to the image_pull_secrets keyword as follows:

[
   {
      "name": "string",
      "description": "string",
      "status": "active",
      "image_url": "string",
      "default_params": {
         "nodepool_label": "",
         "memory": 0.5,
         "memory_scale": "Gi",
         "cpu": 250,
         "cpu_scale": "m",
         "gpu": 0,
         "autoscaling_class": "kpa.autoscaling.knative.dev",
         "autoscaling_metric": "concurrency",
         "autoscaling_target": 200,
         "min_scale": 0,
         "max_scale": 1
         "image_pull_secrets": [
            "secret-registry"
         ]
      },
      "volume_mounts": {},
      "environment_variables": {},
      "port": 8080,
      "runtime_object": "knative"
   }
]

Tag and push the containers to the new private registry:

 python import-images.py --map-file vianai-<VERSION>.json --dest-repo <DEST-REPO>

where:

VERSION should match the Vianai platform
DEST_REPO must match the address for the target private registry

For example, for v3.1r1 the command for a test repo may be:

 python import-images.py --map-file vianai-3.1r1.json --dest-repo testprivaterepo.azurecr.io

While the command for a production AWS repo may be:

 python import-images.py --map-file vianai-3.1r1.json --dest-repo <AWS ACCT ID>.dkr.ecr.<REGION>.amazonaws.com

Authorize access to the Vianai container repository:
```
gcloud auth activate-service-account <ACCOUNT-NAME> --key-file=<YOUR-SERVICE-ACCOUNT-CREDS>.json

gcloud auth configure-docker us.gcr.io
```
where:
- ACCOUNT-NAME is the value provided in the client_email field of your service account file
- YOUR-SERVICE-ACCOUNT-CREDS is provided in your service account file
Set up WRITE access authorization for the private container registry.
Transfer Vianai images using the clone script:
```
python import-images.py --map-file <VIANAI-PROVIDED-IMAGE-MAP-FILE> --dest-repo <PARTNER-CONTAINER-REGISTRY>
```
where:
- VIANAI-PROVIDED-IMAGE-MAP-FILE is the location of the Vianai-provided image map file
- PARTNER-CONTAINER-REGISTRY is provided in your service account file

Repository Authentication

Azure

See instructions for creating a container registry in Azure.
Authenticate via command line:
```
  az login --use-device-code
  az acr login -n TESTPRIVATEREPO --expose-token
```
where TESTPRIVATEREPO is the name for your Azure container registry (replace with actual registry name)

AWS

See instructions for creating a container registry in create ECS.

Authenticate via command line:

  export AWS_ACCESS_KEY_ID=xxxxxx
  export AWS_SECRET_ACCESS_KEY=yyyyy

  aws ecr get-login-password --region REGION | docker login --username AWS --password-stdin AWS_ACCT_ID.dkr.ecr.REGION.amazonaws.com

where:

REGION matches your ECS region
AWS_ACCT_ID identifies your AWS account

GCP

See instructions for creating a container registry in create GCP.
Authenticate via command line:
```
  gcloud auth activate-service-account <ACCOUNT-NAME> --key-file=<YOUR-SERVICE-ACCOUNT-CREDS>.JSON
  gcloud auth configure-docker us.gcr.io
```
where:
- ACCOUNT-NAME matches your GCP registry account name region
- YOUR-SERVICE-ACCOUNT-CREDS identifies your GCP service account

Create a VM

Create a VM on your cloud provider with the following minimum specifications:

CPUs 16

RAM 64 GB

Disk 500 GB

OS Ubuntu 24.04 LTS

Networking • HTTPS (for end user access)
• SSH enabled (or similar method so you can upload the script to the VM)

Note the IP address for use in the installation process.
For convenience and consistency, create the VM with the username ubuntu. If you use a different username, replace ubuntu with your username in the following steps.
To create an ssh key to access the VM:
1. In a terminal on your local machine, run ssh-keygen to create a new key pair.
2. Press enter to accept the default location for the key pair, or enter a filename.
3. Press enter to accept the default passphrase, or enter a passphrase.
4. Press enter to confirm the passphrase.
5. The public key is saved in the ~/.ssh directory with the default name or the name you provided.
6. Open the public key file and copy the contents to the ssh public key field when you create the VM.

Verify third-party requirments and whitelist URLs

Before installing hila, verify that your VM has the minimum third-party tools and that the necessary URLs are whitelisted.

See Third-party requirements and whitelist URLs for deploying hila for details.

Standard hila install

From a terminal on your local machine, ssh into the VM, making sure to edit YOUR_PRIVATE_KEY_FILE to point to your private key file and IP_ADDRESS to match your VM’s IP address:

ssh -i "~/.ssh/<YOUR_PRIVATE_KEY_FILE>.key" -o StrictHostKeyChecking=no ubuntu@<IP_ADDRESS> -t bash

Set the following environment variables:

 export api_key=<YOUR API KEY>
 export version=HILA_VERSION_TO_INSTALL # (Current release is 4.3.0-r.1)
 export domain=YOUR_DNS_DOMAIN          # (excluding cluster name)
 export datadir=/home/ubuntu/data       # (if not set, defaults to /swapfile)
 export cloud_provider=CLOUD_PROVIDER   # (aws, azure, gcp, or oci)
 export admin_email=YOUR_EMAIL

Note: The email is important because it is used to send a one-time login email to the admin user. The admin then sets up a password as then has access to hila.

Pull the latest install scripts from Vianai’s repository:

 wget --header "x-api-key:$api_key" -q -O - 'https://webservices.launchpad.vianai.site/v1/stacks-installers' | tar -xzv

Run pre-check
1. Run the pre-check script to gather the VM details necessary to verify it is suitable to install Conversational Analysis. This command also registers a DNS entry and generates a certificate.
```
 sudo ./cluster-creation-scripts/k3s_vm_precheck.sh api_key=$api_key
```
  - The recommended values are in the column on the right.
  - If you don’t run with sudo, you will get a permissions denied error.
2. In another shell, run the curl command at the bottom of the pre-check output to verify the DNS and certificate were created successfully. You must run it in another shell because the current shell is busy running the pre-check script.
3. Type Ctrl-C to exit the pre-check script when you see the curl command output shows the DNS and certificate are correct.
Install hila
1. Install hila by running the following command:
```
./cluster-creation-scripts/k3s-microstack.sh vm_setup_only=run cloud_provider=$cloud_provider custom_cert=no custom_repo=no cluster_name=$HOSTNAME admin_email=$admin_email datadir=$datadir dns_domain=$domain api_key=$api_key image_branch=$version
```
  - If you are prompted for the ssh public key value, enter it. If you are prompted for any other values, accept the defaults by pressing Enter.
  - After this command finishes, it can take up to 30 minutes for you to get the one-time login email.
  - To monitor the progress of the pod install, open a new terminal window to the VM and enter the following command:

    watch -n 2 kubectl get pods
  - You can also monitor when the certificate goes true in another terminal window with this command:

    watch -n 2 kubectl get certificates -A
2. When the install is complete, you will receive an email with a one-time login link.
3. Click the link in the email to set up your password.
4. After entering a new password, click Back to sign in page.
5. Log in with your username and password. Your username is the part of your email address before the “@” symbol.

Install hila with a custom certificate

Create your certificate and register the A and CNAME DNS records, making sure the records point to the VMs IP address. To verify, ping the VM:

ping <VM_IP_ADDRESS> to verify the A record.
ping monitoring.<VM_IP_ADDRESS> to verify the CNAME record.

Note: Wildcard certificate is recommended.

While you should use the wildcard certificate, these are the subdomains that the wildcard would cover:

Subdomain
airflow.<dns.record.site>
edahub.<dns.record.site>
kibana.<dns.record.site>
ldapadmin.<dns.record.site>
mlflow.<dns.record.site>
monitoring.<dns.record.site>
pgadmin.<dns.record.site>
portainer.<dns.record.site>
sqlpad.<dns.record.site>
superset.<dns.record.site>
thinkfin.<dns.record.site>
ui.<dns.record.site>
webservices.<dns.record.site>

Copy your new certificate and key files to VM in /home/ubuntu:

scp -i ~/.ssh/<YOUR_PRIVATE_KEY_FILE>.key <CERTIFICATE_FILE> ubuntu@<VM_IP_ADDRESS>:/home/ubuntu/`

From a terminal on your local machine, ssh into the VM, making sure to edit YOUR_PRIVATE_KEY_FILE to point to your private key file and IP_ADDRESS to your VM’s IP address:
```
ssh -i "~/.ssh/<YOUR_PRIVATE_KEY_FILE>.key" -o StrictHostKeyChecking=no ubuntu@<IP_ADDRESS> -t bash
```

Run the following export commands to set up the variables for the install, updating the values with UPPERCASE letters to match your environment.

export api_key=YOUR_API_KEY
export version=HILA_VERSION_TO_INSTALL # (Current release is 4.3.0-r.1)
export domain=YOUR_DNS_DOMAIN
export datadir=/home/ubuntu/data # (if not set, defaults to /swapfile)
export cert_file_path=CERTIFICATE_FILE
export key_file_path=KEY_FILE
export cloud_provider=CLOUD_PROVIDER [ aws|azure|gcp|oci ]
export admin_email=YOUR_EMAIL

Pull the latest install script from launchpad with the following command:

wget --header "x-api-key:$api_key" -q -O - 'https://webservices.launchpad.vianai.site/v1/stacks-installers' | tar -xzv

Run the pre-check script to gather the VM details necessary to verify it is suitable to install hila.
```
sudo ./cluster-creation-scripts/k3s_vm_precheck.sh api_key=$api_key domain=$domain cert_file=$cert_file_path key_file=$key_file_path
```
- The recommended values are in the column on the right.
- If you don’t run with sudo, you will get a permissions denied error.

Run the install command.

./cluster-creation-scripts/k3s-microstack.sh vm_setup_only=run cloud_provider=$cloud_provider custom_cert=clientpath cert_file=$cert_file_path cert_key_file=$key_file_path custom_repo=no cluster_name=$HOSTNAME admin_email=$admin_email datadir=$datadir dns_domain=$domain api_key=$api_key image_branch=$version

If you are prompted for values, press Enter to accept defaults.
After this command finishes, it can take up to 30 minutes for you to get the one-time login email.
To monitor the progress of the pod install, open a new terminal window to the VM and enter the following command:
```
watch -n 2 kubectl get pods
```
You can also monitor when the certificate goes true in another terminal window with this command:
```
watch -n 2 kubectl get certificates -A
```

When the install is complete, you will receive an email with a one-time login link.
Click the link in the email to set up your password and log in to hila.

Install hila with custom certificate and private registry

Create your certificate and register the A and CNAME DNS records, making sure the records point to the VMs IP address. To verify, ping the VM:

ping <VM_IP_ADDRESS> to verify the A record.
ping monitoring.<VM_IP_ADDRESS> to verify the CNAME record.

Note: Wildcard certificate is recommended.

While you should use the wildcard certificate, these are the subdomains that the wildcard would cover:

Subdomain
airflow.<dns.record.site>
edahub.<dns.record.site>
kibana.<dns.record.site>
ldapadmin.<dns.record.site>
mlflow.<dns.record.site>
monitoring.<dns.record.site>
pgadmin.<dns.record.site>
portainer.<dns.record.site>
sqlpad.<dns.record.site>
superset.<dns.record.site>
thinkfin.<dns.record.site>
ui.<dns.record.site>
webservices.<dns.record.site>

Copy your new certificate and key files to VM in /home/ubuntu:

scp -i ~/.ssh/<YOUR_PRIVATE_KEY_FILE>.key <CERTIFICATE_FILE> ubuntu@<VM_IP_ADDRESS>:/home/ubuntu/

From a terminal on your local machine, ssh into the VM, making sure to edit YOUR_PRIVATE_KEY_FILE to point to your private key file and IP_ADDRESS to your VM’s IP address:
```
ssh -i "~/.ssh/<YOUR_PRIVATE_KEY_FILE>.key" -o StrictHostKeyChecking=no ubuntu@<IP_ADDRESS> -t bash
```

Run the following export commands to set up the variables for the install, updating the values with UPPERCASE letters to match your environment.

export api_key=YOUR_API_KEY
export version=HILA_VERSION_TO_INSTALL # (Current release is 4.3.0-r.1)
export domain=YOUR_DNS_DOMAIN
export datadir=/home/ubuntu/data # (if not set, defaults to /swapfile)
export azure_repo=customerrepo.azurecr.io
export cert_file_path=CERTIFICATE_FILE
export key_file_path=KEY_FILE
export cloud_provider=CLOUD_PROVIDER [ aws|azure|gcp|oci ]
export admin_email=YOUR_EMAIL

Pull the latest install script from launchpad with the following command:

wget --header "x-api-key:$api_key" -q -O - 'https://webservices.launchpad.vianai.site/v1/stacks-installers' | tar -xzv

Run the pre-check script to gather the VM details necessary to verify it is suitable to install hila.
```
sudo ./cluster-creation-scripts/k3s_vm_precheck.sh api_key=$api_key domain=$domain cert_file=$cert_file_path key_file=$key_file_path
```
- The recommended values are in the column on the right.
- If you don’t run with sudo, you will get a permissions denied error.
Set up your private registry.
1. Open the file ./cluster-creation-scripts/k3s-microstack.sh.
2. Comment out the line ./install.sh.
3. Run the install command.
```
./cluster-creation-scripts/k3s-microstack.sh vm_setup_only=run cloud_provider=$cloud_provider custom_cert=clientpath cert_file=$cert_file_path cert_key_file=$key_file_path custom_repo=yes cluster_name=$HOSTNAME admin_email=$admin_email datadir=$datadir dns_domain=$domain api_key=$api_key image_branch=$version
```
  - If you are prompted for values, press Enter to accept defaults.
4. Run the custom_repo.sh script with the following command:
```
~/vianai-platform/k2s-microstack/custom_repo.sh pull_secret_file=../pull-secret.json dest_repo=<DESTINATION_REPO_URL>
```
  The script creates a file called registry-secret.secret.values.yaml in the vianai-platform/charts directory.
5. Replace the content in registry-secret.values.yaml with the content from registry-secret.secret.values.yaml. Both files are in the vianai-platform/charts directory.
Download and install the Azure CLI as described in Install other tools.
Download and install gcloud as described in Install other tools.
Install Docker as described in Install other tools.

Get the transfer scripts by running each of the following commands:

wget --header "x-api-key:$api_key" -q -O - "https://webservices.launchpad.vianai.site/v1/generate-transfer?image_branch=$version&cloud_provider=azure&dest_repo=$azure_repo" | tar -xzv
./transfer.sh

Before running the install script, edit ~/vianai-platform/install.sh to comment out the line that runs custom_repo.sh.
Install by running ~/vianai-platform/install.sh.
- After this command finishes, it can take up to 30 minutes for you to get the one-time login email.
- To monitor the progress of the pod install, open a new terminal window to the VM and enter the following command:
```
 watch -n 2 kubectl get pods
```
- You can also monitor when the certificate goes true in another terminal window with this command:
```
 watch -n 2 kubectl get certificates -A
```
When the install is complete, you will receive an email with a one-time login link.
Click the link in the email to set up your password and log in to hila.

OnPrem hila install

Create your certificate and register the A and CNAME DNS records, making sure the records point to the VMs IP address. To verify, ping the VM:
- ping <VM_IP_ADDRESS> to verify the A record.
- ping monitoring.<VM_IP_ADDRESS> to verify the CNAME record.

Copy your new certificate and key files to VM in /home/ubuntu:

scp -i ~/.ssh/<YOUR_PRIVATE_KEY_FILE>.key <CERTIFICATE_FILE> ubuntu@<VM_IP_ADDRESS>:/home/ubuntu/

From a terminal on your local machine, ssh into the VM, making sure to edit YOUR_PRIVATE_KEY_FILE to point to your private key file and IP_ADDRESS to your VM’s IP address:
```
ssh -i "~/.ssh/<YOUR_PRIVATE_KEY_FILE>.key" -o StrictHostKeyChecking=no ubuntu@<IP_ADDRESS> -t bash
```

Run the following export commands to set up the variables for the install, updating the values with UPPERCASE letters to match your environment.

export api_key=YOUR_API_KEY
export version=HILA_VERSION_TO_INSTALL # (Current release is 4.3.0-r.1)
export domain=YOUR_DNS_DOMAIN
export datadir=/home/ubuntu/data # (if not set, defaults to /swapfile)
export cust_repo=localhost:5000
export cert_file_path=CERTIFICATE_FILE
export key_file_path=KEY_FILE
export cloud_provider=CLOUD_PROVIDER [ aws|azure|gcp|oci ]
export admin_email=YOUR_EMAIL

Pull the latest install script from launchpad with the following command:

wget --header "x-api-key:$api_key" -q -O - 'https://webservices.launchpad.vianai.site/v1/stacks-installers' | tar -xzv

Set up your private registry.
1. Open the file ./cluster-creation-scripts/k3s-microstack.sh.
2. Comment out the line ./install.sh.
3. Run ./cluster-creation-scripts/k3s-microstack.sh. This creates the custom-repo.sh script in the vianai-platform/k3s-microstack directory.
4. Run the custom_repo.sh script with the following command:
```
~/vianai-platform/k2s-microstack/custom_repo.sh pull_secret_file=../pull-secret.json dest_repo=<DESTINATION_REPO_URL>
```
  The script creates a file called registry-secret.secret.values.yaml in the vianai-platform/charts directory.
5. Replace the content in registry-secret.values.yaml with the content from registry-secret.secret.values.yaml. Both files are in the vianai-platform/charts directory.
6. Before running the install script, edit ~/vianai-platform/install.sh to comment out the line that runs custom_repo.sh.
7. Install by running ~/vianai-platform/install.sh.
Run the pre-check script to gather the VM details necessary to verify it is suitable to install hila.
```
sudo ./cluster-creation-scripts/k3s_vm_precheck.sh api_key=$api_key domain=$domain cert_file=$cert_file_path key_file=$key_file_path
```
- The recommended values are in the column on the right.
- If you don’t run with sudo, you will get a permissions denied error.
Download and install gcloud as described in Install other tools.
Install Docker as described in Install other tools.

Get the transfer scripts by running each of the following commands:

wget --header "x-api-key:$api_key" -q -O - "https://webservices.launchpad.vianai.site/v1/generate-transfer?image_branch=$version&cloud_provider=azure&dest_repo=$azure_repo" | tar -xzv
./cluster-creation-scripts/local-registry.sh install_podman=yes datadir=$datadir
./transfer.sh

Run the install command.

./cluster-creation-scripts/k3s-microstack.sh vm_setup_only=run cloud_provider=$cloud_provider custom_cert=clientpath cert_file=$cert_file_path cert_key_file=$key_file_path custom_repo=yes dest_repo=$cust_repo cluster_name=$HOSTNAME admin_email=$admin_email dns_domain=$domain api_key=$api_key image_branch=$version

If you are prompted for values, press Enter to accept defaults.
After this command finishes, it can take up to 30 minutes for you to get the one-time login email.
To monitor the progress of the pod install, open a new terminal window to the VM and enter the following command:
```
watch -n 2 kubectl get pods
```
You can also monitor when the certificate goes true in another terminal window with this command:
```
watch -n 2 kubectl get certificates -A
```

When the install is complete, you will receive an email with a one-time login link.
Click the link in the email to set up your password and log in to hila.
If you want to also restrict your IP addresses to a private address range, follow the steps in Map private IP addresses.

Install other tools

You only need to install these one time for your VM.

Download and install the Azure CLI.

curl -sL https://aka.ms/InstallAzureCLIDeb | sudo bash
az login --use-device-code
az acr login --name customerrepo

Download and install the Google Cloud CLI

curl https://packages.cloud.google.com/apt/doc/apt-key.gpg | sudo gpg --dearmor \
     -o /usr/share/keyrings/cloud.google.gpg
echo "deb [signed-by=/usr/share/keyrings/cloud.google.gpg] \
     https://packages.cloud.google.com/apt cloud-sdk main" | sudo tee \
     -a /etc/apt/sources.list.d/google-cloud-sdk.list
sudo apt-get update && sudo apt-get -y install google-cloud-cli
gcloud auth login

Install Docker

sudo apt-get update
sudo apt-get install ca-certificates curl
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc
echo \
    "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] \
    https://download.docker.com/linux/ubuntu \
    $(. /etc/os-release && echo "$VERSION_CODENAME") stable" | \
    sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
sudo apt-get update
sudo apt-get install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin
sudo usermod -aG docker ${USER}
groups ### make sure the user has this in docker group. If not, try rebooting the VM.

Upgrade to a new hila release

To instructions on upgrading an existing hila installation to a new release, see Upgrade your hila deployment.

ON THIS PAGE

CPUs	16
RAM	64 GB
Disk	500 GB
OS	Ubuntu 24.04 LTS
Networking	• HTTPS (for end user access) • SSH enabled (or similar method so you can upload the script to the VM)

COMPARTMENT_ID	Enter your project ID.
CLUSTER_NAME	Enter your cluster name.
